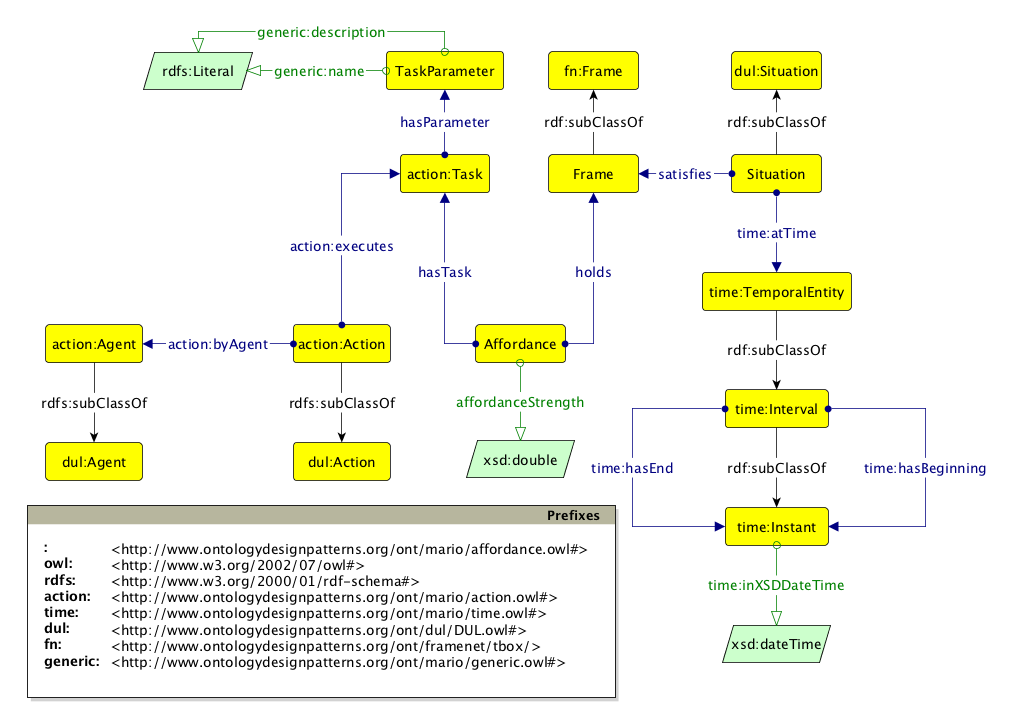

Graphical representation

Diagram

General description


Name:	Affordance
Submitted by:	AndreaNuzzolese
Also Known As:
Intent:	To represent the model for supporting the action selection mechanism.
Domains:
Competency Questions:	Which is the strength of an Affordance? Which tasks are afforded in a certain situation?How should an agent behave in a certain situation?Which are the parameters involved in certain task?
Solution description:	The Afforndance ODP relies on the descriptions and situations ODP, and is combined with a frame-based representation scheme. This allows to extend the notion of affordance not only to physical objects, but also complex situations afford actions.
Reusable OWL Building Block:	[http://www.ontologydesignpatterns.org/ont/mario/affordance.owl](http://ontologydesignpatterns.org/wiki/index.php?title=Special:ClickHandler&link=http://www.ontologydesignpatterns.org/ont/mario/affordance.owl&message=OWL building block&from_page_id=4130&update=) (581)
Consequences:
Scenarios:
Known Uses:
Web References:
Other References:
Examples (OWL files):
Extracted From:	http://www.ontologydesignpatterns.org/ont/dul/DUL.owl
Reengineered From:
Has Components:
Specialization Of:
Related CPs:

Elements

The Affordance Content OP locally defines the following ontology elements:

hasParameter (owl:ObjectProperty) It associates the Task with its parameters. hasParameter page hasTask (owl:ObjectProperty) It associates an Affordance to the Task it refers to. hasTask page holds (owl:ObjectProperty) It associates an Affordance with the Frame in which it holds. holds page isHeldBy (owl:ObjectProperty) It associates a Frame with the Affordance it enables. isHeldBy page affordanceStrength (owl:DatatypeProperty) It encodes the strength of the Affordance. affordanceStrength page Affordance (owl:Class) An affordance is modelled in DnS fashion and is an n-ary that relates state of the world (i.e., situations) to tasks according to specific weights or affordance strengths. Affordance page Frame (owl:Class) Frame page Situation (owl:Class) A state of the world. Situation page TaskParameter (owl:Class) A parameter of a task. TaskParameter page
