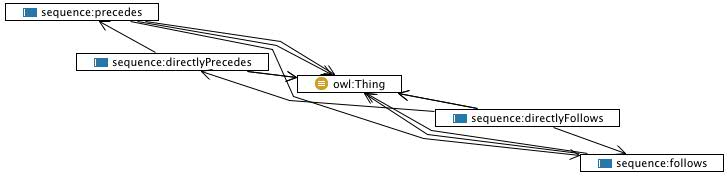

Graphical representation

Diagram


General description
Name: Sequence
Submitted by: AldoGangemi
Also Known As:
Intent: To represent sequence schemas. It defines the notion of transitive and intransitive precedence and their inverses.It can then be used between tasks, processes, time intervals, spatially locate objects, situations, etc.
Domains: General, Organization, Workflow, Time
Competency Questions:
  • What is before what?
  • What's next?
  • What's immediately following this?
    		•
    Solution description: This pattern is a basic one; it represents the 'path' cognitive schema, which underlies many different conceptualizations: spatial paths, time lines, event sequences, organizational hierarchies, graph paths, etc.Sequence pattern reuses the logical pattern Transitive reduction, in order to represent both transitive and non-transitive precedence relations.
    Reusable OWL Building Block: [http://ontologydesignpatterns.org/cp/owl/sequence.owl](http://ontologydesignpatterns.org/wiki/index.php?title=Special:ClickHandler&link=http://ontologydesignpatterns.org/cp/owl/sequence.owl&message=OWL building block&from_page_id=756&update=) (910)
    Consequences: We can represent and reason over transitive or intransitive sequences of any kind. However, since coreference cannot be expressed in OWL, it is not possible to represent and reason over loops and other sequences involving coreference.
    Scenarios:
    Known Uses:
    Web References:
    Other References:
    Examples (OWL files):
    Extracted From:
  • http://www.ontologydesignpatterns.org/ont/dul/DUL.owl
    		•
    Reengineered From:
    Has Components:
    Specialization Of:
    Related CPs:

    Elements

    The Sequence Content OP locally defines the following ontology elements:

    ObjectProperty directlyFollows (owl:ObjectProperty) The intransitive follows relation. For example, Wednesday directly precedes Thursday. Directness of precedence depends on the designer conceptualization. directlyFollows page ObjectProperty directlyPrecedes (owl:ObjectProperty) The intransitive precedes relation. For example, Monday directly precedes Tuesday. Directness of precedence depends on the designer conceptualization. directlyPrecedes page ObjectProperty follows (owl:ObjectProperty) A relation between entities, expressing a 'sequence' schema. E.g. 'year 2000 follows 1999', 'preparing coffee' follows 'deciding what coffee to use', 'II World War follows I World War', etc.

    It can be used between tasks, processes or time intervals, and subproperties would fit best in order to distinguish the different uses.

    follows page ObjectProperty precedes (owl:ObjectProperty) A relation between entities, expressing a 'sequence' schema. E.g. 'year 1999 precedes 2000', 'deciding what coffee to use' precedes 'preparing coffee', 'World War II follows World War I', 'in the Milan to Rome autoroute, Bologna precedes Florence', etc.

    It can then be used between tasks, processes, time intervals, spatially locate objects, situations, etc.

    Subproperties can be defined in order to distinguish the different uses.

    precedes page

    Additional information

    Scenarios

    Scenarios about Sequence No scenario is added to this Content OP.

    Reviews

    Reviews about Sequence There is no review about this proposal. This revision (revision ID 9120) takes in account the reviews: none

    Other info at evaluation tab

    Modeling issues

    Modeling issues about Sequence There is no Modeling issue related to this proposal.

    References
